K157減速機重量：K157減速機重量610公斤，K157減速機配電機重量分別如下

K157減速機配11KW電機重量725公斤，K157減速機配15KW電機重量745公斤，K157減速機配18.5KW電機重量782公斤，K157減速機配22KW電機重量795公斤，K157減速機配30KW電機重量863公斤，K157減速機配37KW電機重量910公斤，K157減速機配45KW電機重量945公斤，K157減速機配55KW電機重量1030公斤，K157減速機配75KW電機重量1170公斤，K157減速機配90KW電機重量1280公斤，K157減速機配110KW電機重量1530公斤，K157減速機配132KW電機重量1660公斤，K157減速機配160KW電機重量1770公斤，K157減速機配200KW電機重量1850公斤。直角減速機

K157減速機加油量：可加礦物油

K157減速機M1安裝加31升，K157減速機M2安裝加62升，K157減速機M3安裝加65升，K157減速機M4安裝加90升，K157減速機M5安裝加58升，K157減速機M6安裝加62升。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時，您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速機相應的標準參考潤滑油注入量值。

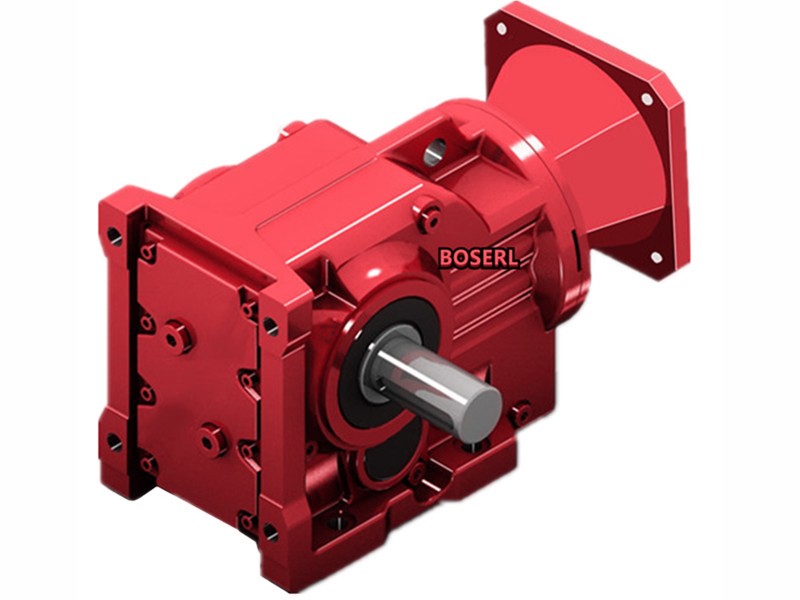

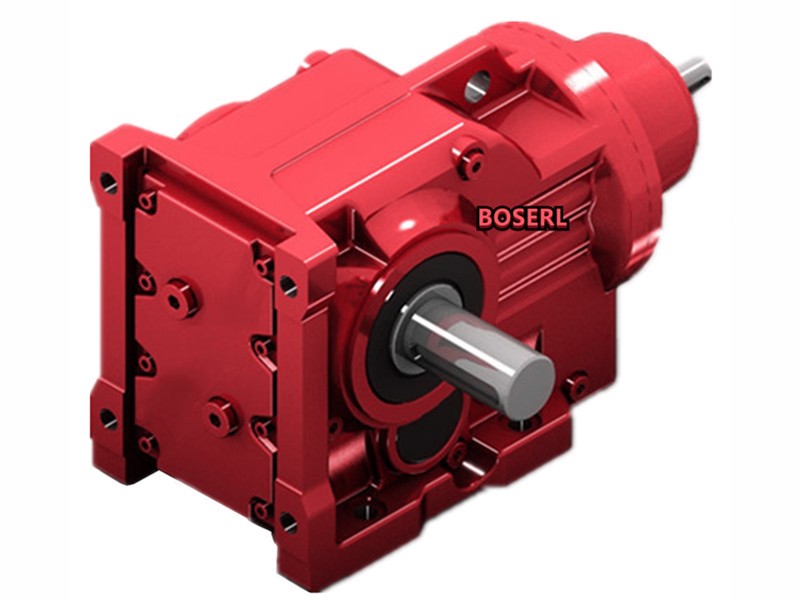

K157減速機實物圖：圖一為K157臥式安裝螺旋錐齒輪減速電機，圖二KF157立式安裝實心軸輸出螺旋錐齒輪減速電機，圖三為KA157臥式安裝空心軸螺旋錐齒輪減速電機，圖四為KAF157立式安裝直角空心軸螺旋錐齒輪減速機。

K157減速機型號表示方法：

K157減速機型號結構K157-B200KW-4P-減速比-安裝方式-接線盒位置。

K157減速機性能參數表結構說明：RS逆止器，V強制冷卻風扇，C防雨罩，Input Configuration代表輸入配置，TF電機熱保護裝置，K157、KF157、KA157、KAF157減速機機座號，N代表徑向負荷，HR手動釋放裝置，1/min代表輸出轉數，HF手動釋放裝置帶自鎖功能。K系列減速機

K157減速機電機接線盒方位說明：本頁附件選型資料視圖為M1安裝，方向為:從電機尾部的風罩向前看。可提供R(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位。可提供S和N兩種進線方位，其中R(0°)位置是默認方位，如無特別說明，將按默認方位提供。

K157減速機結構圖：

K157減速機參數：

K157減速機電機可配單相/直流/變頻/剎車/防爆/伺服/交流/三相電機K157配11KW，K157配15KW，K157配18.5KW，K157配22KW，K157配30KW，K157配37KW，K157配45KW，K157配55KW，K157配75KW，K157配90KW，K157配110KW，K157配132KW，K157配160KW，K157配200KW。

K157減速機減速比150.41比，122.39比，100.22比，91.65比，79.75比，70.38比，61.02比，54.29比，46.79比，38.02比，31.3比，27.62比，23.95比，21.31比，18.37比，14.92比，12.65比。

K157減速機輸出轉數9.3轉，11轉，14轉，15轉，18轉，20轉，23轉，26轉，30轉，37轉，45轉，51轉，58轉，66轉，76轉，94轉，111轉。（以上轉數均為四級電機算出的，可用2P/6P/8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為K系列減速機的輸入）

K157減速機輸出扭矩18000N.m，17000N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

K157減速機尺寸圖紙：高750*寬707（帶輸出軸）*長706

K157減速機型號：K157AQA80,K157AQA100,K157AQA115,K157AQA140,K157AQA160,K157AQA190,K157AQH80,K157AQH100,K157AQH115,K157AQH140,K157AQH160,K157AQH190,JRTK157-Y110KW,JRTK157-Y11KW,JRTK157-Y132KW,JRTK157-Y15KW,JRTK157-Y160KW,JRTK157-Y160M4,JRTK157-Y18.5KW,JRTK157-Y180M4,JRTK157-Y200KW,JRTK157-Y200M4,JRTK157-Y225M4,JRTK157-Y22KW,JRTK157-Y250M4,JRTK157-Y280M4,JRTK157-Y30KW,JRTK157-Y315M4,JRTK157-Y37KW,JRTK157-Y45KW,JRTK157-Y55KW,JRTK157-Y75KW,JRTK157-Y90KW,JRTK157-YEJ160M4,JRTK157-YEJ180M4,JRTK157-YEJ200M4,JRTK157-YEJ225M4,JRTK157-YEJ250M4,JRTK157-YEJ280M4,JRTK157-YEJ315M4,JRTK157-YS160M4,JRTK157-YS180M4,JRTK157-YS200M4,JRTK157-YS225M4,JRTK157-YS250M4,JRTK157-YS280M4,JRTK157-YS315M4,JRTK157-YVP160M4,JRTK157-YVP180M4,JRTK157-YVP200M4,JRTK157-YVP225M4,JRTK157-YVP250M4,JRTK157-YVP280M4,JRTK157-YVP315M4,JRTK157-YVPEJ160M4,JRTK157-YVPEJ180M4,JRTK157-YVPEJ200M4,JRTK157-YVPEJ225M4,JRTK157-YVPEJ250M4,JRTK157-YVPEJ280M4,JRTK157-YVPEJ315M4,EWK157-Y110KW,EWK157-Y11KW,EWK157-Y132KW,EWK157-Y15KW,EWK157-Y160KW,EWK157-Y160M4,EWK157-Y18.5KW,EWK157-Y180M4,EWK157-Y200KW,EWK157-Y200M4,EWK157-Y225M4,EWK157-Y22KW,EWK157-Y250M4,EWK157-Y280M4,EWK157-Y30KW,EWK157-Y315M4,EWK157-Y37KW,EWK157-Y45KW,EWK157-Y55KW,EWK157-Y75KW,EWK157-Y90KW,EWK157-YEJ160M4,EWK157-YEJ180M4,EWK157-YEJ200M4,EWK157-YEJ225M4,EWK157-YEJ250M4,EWK157-YEJ280M4,EWK157-YEJ315M4,EWK157-YS160M4,EWK157-YS180M4,EWK157-YS200M4,EWK157-YS225M4,EWK157-YS250M4,EWK157-YS280M4,EWK157-YS315M4,EWK157-YVP160M4,EWK157-YVP180M4,EWK157-YVP200M4,EWK157-YVP225M4,EWK157-YVP250M4,EWK157-YVP280M4,EWK157-YVP315M4,EWK157-YVPEJ160M4,EWK157-YVPEJ180M4,EWK157-YVPEJ200M4,EWK157-YVPEJ225M4,EWK157-YVPEJ250M4,EWK157-YVPEJ280M4,EWK157-YVPEJ315M4,SLK157-Y110KW,SLK157-Y11KW,SLK157-Y132KW,SLK157-Y15KW,SLK157-Y160KW,SLK157-Y160M4,SLK157-Y18.5KW,SLK157-Y180M4,SLK157-Y200KW,SLK157-Y200M4,SLK157-Y225M4,SLK157-Y22KW,SLK157-Y250M4,SLK157-Y280M4,SLK157-Y30KW,SLK157-Y315M4,SLK157-Y37KW,SLK157-Y45KW,SLK157-Y55KW,SLK157-Y75KW,SLK157-Y90KW,SLK157-YEJ160M4,SLK157-YEJ180M4,SLK157-YEJ200M4,SLK157-YEJ225M4,SLK157-YEJ250M4,SLK157-YEJ280M4,SLK157-YEJ315M4,SLK157-YS160M4,SLK157-YS180M4,SLK157-YS200M4,SLK157-YS225M4,SLK157-YS250M4,SLK157-YS280M4,SLK157-YS315M4,SLK157-YVP160M4,SLK157-YVP180M4,SLK157-YVP200M4,SLK157-YVP225M4,SLK157-YVP250M4,SLK157-YVP280M4,SLK157-YVP315M4,SLK157-YVPEJ160M4,SLK157-YVPEJ180M4,SLK157-YVPEJ200M4,SLK157-YVPEJ225M4,SLK157-YVPEJ250M4,SLK157-YVPEJ280M4,SLK157-YVPEJ315M4,DSZK157-Y110KW,DSZK157-Y11KW,DSZK157-Y132KW,DSZK157-Y15KW,DSZK157-Y160KW,DSZK157-Y160M4,DSZK157-Y18.5KW,DSZK157-Y180M4,DSZK157-Y200KW,DSZK157-Y200M4,DSZK157-Y225M4,DSZK157-Y22KW,DSZK157-Y250M4,DSZK157-Y280M4,DSZK157-Y30KW,DSZK157-Y315M4,DSZK157-Y37KW,DSZK157-Y45KW,DSZK157-Y55KW,DSZK157-Y75KW,DSZK157-Y90KW,DSZK157-YEJ160M4,DSZK157-YEJ180M4,DSZK157-YEJ200M4,DSZK157-YEJ225M4,DSZK157-YEJ250M4,DSZK157-YEJ280M4,DSZK157-YEJ315M4,DSZK157-YS160M4,DSZK157-YS180M4,DSZK157-YS200M4,DSZK157-YS225M4,DSZK157-YS250M4,DSZK157-YS280M4,DSZK157-YS315M4,DSZK157-YVP160M4,DSZK157-YVP180M4,DSZK157-YVP200M4,DSZK157-YVP225M4,DSZK157-YVP250M4,DSZK157-YVP280M4,DSZK157-YVP315M4,DSZK157-YVPEJ160M4,DSZK157-YVPEJ180M4,DSZK157-YVPEJ200M4,DSZK157-YVPEJ225M4,DSZK157-YVPEJ250M4,DSZK157-YVPEJ280M4,DSZK157-YVPEJ315M4,BK157-Y110KW,BK157-Y11KW,BK157-Y132KW,BK157-Y15KW,BK157-Y160KW,BK157-Y160M4,BK157-Y18.5KW,BK157-Y180M4,BK157-Y200KW,BK157-Y200M4,BK157-Y225M4,BK157-Y22KW,BK157-Y250M4,BK157-Y280M4,BK157-Y30KW,BK157-Y315M4,BK157-Y37KW,BK157-Y45KW,BK157-Y55KW,BK157-Y75KW,BK157-Y90KW,BK157-YEJ160M4,BK157-YEJ180M4,BK157-YEJ200M4,BK157-YEJ225M4,BK157-YEJ250M4,BK157-YEJ280M4,BK157-YEJ315M4,BK157-YS160M4,BK157-YS180M4,BK157-YS200M4,BK157-YS225M4,BK157-YS250M4,BK157-YS280M4,BK157-YS315M4,BK157-YVP160M4,BK157-YVP180M4,BK157-YVP200M4,BK157-YVP225M4,BK157-YVP250M4,BK157-YVP280M4,BK157-YVP315M4,BK157-YVPEJ160M4,BK157-YVPEJ180M4,BK157-YVPEJ200M4,BK157-YVPEJ225M4,BK157-YVPEJ250M4,BK157-YVPEJ280M4,BK157-YVPEJ315M4,GK157-Y110KW,GK157-Y11KW,GK157-Y132KW,GK157-Y15KW,GK157-Y160KW,GK157-Y160M4,GK157-Y18.5KW,GK157-Y180M4,GK157-Y200KW,GK157-Y200M4,GK157-Y225M4,GK157-Y22KW,GK157-Y250M4,GK157-Y280M4,GK157-Y30KW,GK157-Y315M4,GK157-Y37KW,GK157-Y45KW,GK157-Y55KW,GK157-Y75KW,GK157-Y90KW,GK157-YEJ160M4,GK157-YEJ180M4,GK157-YEJ200M4,GK157-YEJ225M4,GK157-YEJ250M4,GK157-YEJ280M4,GK157-YEJ315M4,GK157-YS160M4,GK157-YS180M4,GK157-YS200M4,GK157-YS225M4,GK157-YS250M4,GK157-YS280M4,GK157-YS315M4,GK157-YVP160M4,GK157-YVP180M4,GK157-YVP200M4,GK157-YVP225M4,GK157-YVP250M4,GK157-YVP280M4,GK157-YVP315M4,GK157-YVPEJ160M4,GK157-YVPEJ180M4,GK157-YVPEJ200M4,GK157-YVPEJ225M4,GK157-YVPEJ250M4,GK157-YVPEJ280M4,GK157-YVPEJ315M4,KC157-Y110KW,KC157-Y11KW,KC157-Y132KW,KC157-Y15KW,KC157-Y160KW,KC157-Y160M4,KC157-Y18.5KW,KC157-Y180M4,KC157-Y200KW,KC157-Y200M4,KC157-Y225M4,KC157-Y22KW,KC157-Y250M4,KC157-Y280M4,KC157-Y30KW,KC157-Y315M4,KC157-Y37KW,KC157-Y45KW,KC157-Y55KW,KC157-Y75KW,KC157-Y90KW,KC157-YEJ160M4,KC157-YEJ180M4,KC157-YEJ200M4,KC157-YEJ225M4,KC157-YEJ250M4,KC157-YEJ280M4,KC157-YEJ315M4,KC157-YS160M4,KC157-YS180M4,KC157-YS200M4,KC157-YS225M4,KC157-YS250M4,KC157-YS280M4,KC157-YS315M4,KC157-YVP160M4,KC157-YVP180M4,KC157-YVP200M4,KC157-YVP225M4,KC157-YVP250M4,KC157-YVP280M4,KC157-YVP315M4,KC157-YVPEJ160M4,KC157-YVPEJ180M4,KC157-YVPEJ200M4,KC157-YVPEJ225M4,KC157-YVPEJ250M4,KC157-YVPEJ280M4,KC157-YVPEJ315M4,MTJ157-Y110KW,MTJ157-Y11KW,MTJ157-Y132KW,MTJ157-Y15KW,MTJ157-Y160KW,MTJ157-Y160M4,MTJ157-Y18.5KW,MTJ157-Y180M4,MTJ157-Y200KW,MTJ157-Y200M4,MTJ157-Y225M4,MTJ157-Y22KW,MTJ157-Y250M4,MTJ157-Y280M4,MTJ157-Y30KW,MTJ157-Y315M4,MTJ157-Y37KW,MTJ157-Y45KW,MTJ157-Y55KW,MTJ157-Y75KW,MTJ157-Y90KW,MTJ157-YEJ160M4,MTJ157-YEJ180M4,MTJ157-YEJ200M4,MTJ157-YEJ225M4,MTJ157-YEJ250M4,MTJ157-YEJ280M4,MTJ157-YEJ315M4,MTJ157-YS160M4,MTJ157-YS180M4,MTJ157-YS200M4,MTJ157-YS225M4,MTJ157-YS250M4,MTJ157-YS280M4,MTJ157-YS315M4,MTJ157-YVP160M4,MTJ157-YVP180M4,MTJ157-YVP200M4,MTJ157-YVP225M4,MTJ157-YVP250M4,MTJ157-YVP280M4,MTJ157-YVP315M4,MTJ157-YVPEJ160M4,MTJ157-YVPEJ180M4,MTJ157-YVPEJ200M4,MTJ157-YVPEJ225M4,MTJ157-YVPEJ250M4,MTJ157-YVPEJ280M4,MTJ157-YVPEJ315M4,WXK157-WSS110KW,WXK157-WSS11KW,WXK157-WSS132KW,WXK157-WSS15KW,WXK157-WSS160KW,WXK157-WSS160M4,WXK157-WSS18.5KW,WXK157-WSS180M4,WXK157-WSS200KW,WXK157-WSS200M4,WXK157-WSS225M4,WXK157-WSS22KW,WXK157-WSS250M4,WXK157-WSS280M4,WXK157-WSS30KW,WXK157-WSS315M4,WXK157-WSS37KW,WXK157-WSS45KW,WXK157-WSS55KW,WXK157-WSS75KW,WXK157-WSS90KW,WXK157-WSSB160M4,WXK157-WSSB180M4,WXK157-WSSB200M4,WXK157-WSSB225M4,WXK157-WSSB250M4,WXK157-WSSB280M4,WXK157-WSSB315M4,WXK157-WSSVP160M4,WXK157-WSSVP180M4,WXK157-WSSVP200M4,WXK157-WSSVP225M4,WXK157-WSSVP250M4,WXK157-WSSVP280M4,WXK157-WSSVP315M4,WXK157-WSSVPB160M4,WXK157-WSSVPB180M4,WXK157-WSSVPB200M4,WXK157-WSSVPB225M4,WXK157-WSSVPB250M4,WXK157-WSSVPB280M4,WXK157-WSSVPB315M4。
