K107減速機重量：K107減速機重量250公斤，K107減速機配電機重量分別如下

K107減速機配3KW電機重量285公斤，K107減速機配4KW電機重量296公斤，K107減速機配5.5KW電機重量310公斤，K107減速機配7.5KW電機重量323公斤，K107減速機配11KW電機重量365公斤，K107減速機配15KW電機重量385公斤，K107減速機配18.5KW電機重量422公斤，K107減速機配22KW電機重量435公斤，K107減速機配30KW電機重量503公斤，K107減速機配37KW電機重量550公斤，K107減速機配45KW電機重量585公斤。

K107減速機加油量：可加礦物油

K107減速機M1安裝加10升，K107減速機M2安裝加21升，K107減速機M3安裝加25.5升，K107減速機M4安裝加33.5升，K107減速機M5安裝加24升，K107減速機M6安裝加24升。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時，您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速機相應的標準參考潤滑油注入量值。

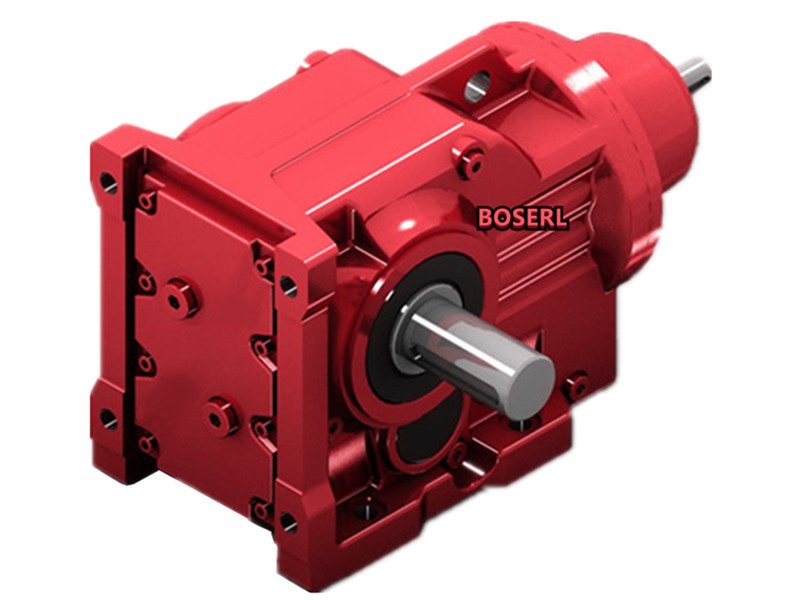

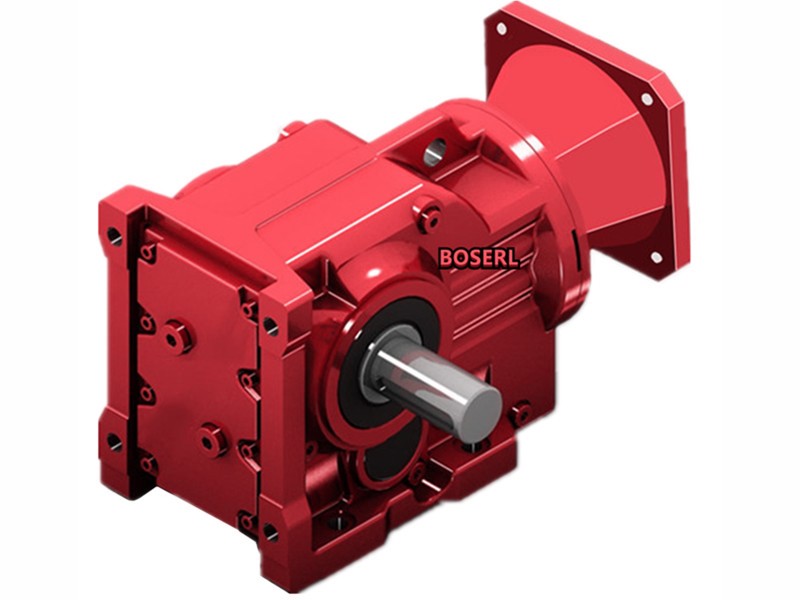

K107減速機實物圖：圖一為K107臥式安裝螺旋錐齒輪減速電機，圖二KF107立式安裝實心軸輸出螺旋錐齒輪減速電機，圖三為KA107臥式安裝空心軸螺旋錐齒輪減速電機，圖四為KAF107立式安裝直角空心軸螺旋錐齒輪減速機。

K107減速機型號表示方法：

K107減速機型號結構K107-B45KW-4P-減速比-安裝方式-接線盒位置。

K107減速機性能參數表結構說明：RS逆止器，V強制冷卻風扇，C防雨罩，Input Configuration代表輸入配置，TF電機熱保護裝置，K107、KF107、KA107、KAF107減速機機座號，N代表徑向負荷，HR手動釋放裝置，1/min代表輸出轉數，HF手動釋放裝置帶自鎖功能。直角減速機

K107減速機電機接線盒方位說明：本頁附件選型資料視圖為M1安裝，方向為:從電機尾部的風罩向前看。可提供R(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位?？商峁㏒和N兩種進線方位，其中R(0°)位置是默認方位，如無特別說明，將按默認方位提供。

K107減速機結構圖：

K107減速機參數：

K107減速機電機可配單相/直流/變頻/剎車/防爆/伺服/交流/三相電機K107配3KW，K107配4KW，K107配5.5KW，K107配7.5KW，K107配11KW，K107配15KW，K107配18.5KW，K107配22KW，K107配30KW，K107配37KW，K107配45KW。

K107減速機減速比7.35比，8.69比，9.94比，11.73比，13.43比，14.64比，16.75比，19.74比，22.62比，26.32比，29比，31.28比，32.69比，37比，42.33比，49.9比，57.17比，66.52比，73.3比，82.61比，90.96比，100.75比，112.41比，121.46比，143.47比。

K107減速機輸出轉數9.8轉，12轉，14轉，15轉，17轉，19轉，21轉，24轉，28轉，33轉，38轉，43轉，45轉，48轉，53轉，62轉，71轉，84轉，96轉，104轉，119轉，141轉，161轉，190轉。（以上轉數均為四級電機算出的，可用2P/6P/8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為K系列減速機的輸入）

K107減速機輸出扭矩3600N.m，4070N.m，4190N.m，4300N.m，6800N.m，6890N.m，7050N.m，7200N.m，7360N.m，7840N.m，8000N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

K107減速機尺寸圖紙：高448*寬513（帶輸出軸）*長541K系列減速機

K107減速機型號：K107AQA80,K107AQA100,K107AQA115,K107AQA140,K107AQA160,K107AQA190,K107AQH80,K107AQH100,K107AQH115,K107AQH140,K107AQH160,K107AQH190,JRTK107-Y100M4,JRTK107-Y112M4,JRTK107-Y11KW,JRTK107-Y132M4,JRTK107-Y15KW,JRTK107-Y160M4,JRTK107-Y18.5KW,JRTK107-Y180M4,JRTK107-Y200M4,JRTK107-Y225M4,JRTK107-Y22KW,JRTK107-Y30KW,JRTK107-Y37KW,JRTK107-Y3KW,JRTK107-Y45KW,JRTK107-Y4KW,JRTK107-Y5.5KW,JRTK107-Y7.5KW,JRTK107-YEJ100M4,JRTK107-YEJ112M4,JRTK107-YEJ132M4,JRTK107-YEJ160M4,JRTK107-YEJ180M4,JRTK107-YEJ200M4,JRTK107-YEJ225M4,JRTK107-YS100M4,JRTK107-YS112M4,JRTK107-YS132M4,JRTK107-YS160M4,JRTK107-YS180M4,JRTK107-YS200M4,JRTK107-YS225M4,JRTK107-YVP100M4,JRTK107-YVP112M4,JRTK107-YVP132M4,JRTK107-YVP160M4,JRTK107-YVP180M4,JRTK107-YVP200M4,JRTK107-YVP225M4,JRTK107-YVPEJ100M4,JRTK107-YVPEJ112M4,JRTK107-YVPEJ132M4,JRTK107-YVPEJ160M4,JRTK107-YVPEJ180M4,JRTK107-YVPEJ200M4,JRTK107-YVPEJ225M4,EWK107-Y100M4,EWK107-Y112M4,EWK107-Y11KW,EWK107-Y132M4,EWK107-Y15KW,EWK107-Y160M4,EWK107-Y18.5KW,EWK107-Y180M4,EWK107-Y200M4,EWK107-Y225M4,EWK107-Y22KW,EWK107-Y30KW,EWK107-Y37KW,EWK107-Y3KW,EWK107-Y45KW,EWK107-Y4KW,EWK107-Y5.5KW,EWK107-Y7.5KW,EWK107-YEJ100M4,EWK107-YEJ112M4,EWK107-YEJ132M4,EWK107-YEJ160M4,EWK107-YEJ180M4,EWK107-YEJ200M4,EWK107-YEJ225M4,EWK107-YS100M4,EWK107-YS112M4,EWK107-YS132M4,EWK107-YS160M4,EWK107-YS180M4,EWK107-YS200M4,EWK107-YS225M4,EWK107-YVP100M4,EWK107-YVP112M4,EWK107-YVP132M4,EWK107-YVP160M4,EWK107-YVP180M4,EWK107-YVP200M4,EWK107-YVP225M4,EWK107-YVPEJ100M4,EWK107-YVPEJ112M4,EWK107-YVPEJ132M4,EWK107-YVPEJ160M4,EWK107-YVPEJ180M4,EWK107-YVPEJ200M4,EWK107-YVPEJ225M4,SLK107-Y100M4,SLK107-Y112M4,SLK107-Y11KW,SLK107-Y132M4,SLK107-Y15KW,SLK107-Y160M4,SLK107-Y18.5KW,SLK107-Y180M4,SLK107-Y200M4,SLK107-Y225M4,SLK107-Y22KW,SLK107-Y30KW,SLK107-Y37KW,SLK107-Y3KW,SLK107-Y45KW,SLK107-Y4KW,SLK107-Y5.5KW,SLK107-Y7.5KW,SLK107-YEJ100M4,SLK107-YEJ112M4,SLK107-YEJ132M4,SLK107-YEJ160M4,SLK107-YEJ180M4,SLK107-YEJ200M4,SLK107-YEJ225M4,SLK107-YS100M4,SLK107-YS112M4,SLK107-YS132M4,SLK107-YS160M4,SLK107-YS180M4,SLK107-YS200M4,SLK107-YS225M4,SLK107-YVP100M4,SLK107-YVP112M4,SLK107-YVP132M4,SLK107-YVP160M4,SLK107-YVP180M4,SLK107-YVP200M4,SLK107-YVP225M4,SLK107-YVPEJ100M4,SLK107-YVPEJ112M4,SLK107-YVPEJ132M4,SLK107-YVPEJ160M4,SLK107-YVPEJ180M4,SLK107-YVPEJ200M4,SLK107-YVPEJ225M4,DSZK107-Y100M4,DSZK107-Y112M4,DSZK107-Y11KW,DSZK107-Y132M4,DSZK107-Y15KW,DSZK107-Y160M4,DSZK107-Y18.5KW,DSZK107-Y180M4,DSZK107-Y200M4,DSZK107-Y225M4,DSZK107-Y22KW,DSZK107-Y30KW,DSZK107-Y37KW,DSZK107-Y3KW,DSZK107-Y45KW,DSZK107-Y4KW,DSZK107-Y5.5KW,DSZK107-Y7.5KW,DSZK107-YEJ100M4,DSZK107-YEJ112M4,DSZK107-YEJ132M4,DSZK107-YEJ160M4,DSZK107-YEJ180M4,DSZK107-YEJ200M4,DSZK107-YEJ225M4,DSZK107-YS100M4,DSZK107-YS112M4,DSZK107-YS132M4,DSZK107-YS160M4,DSZK107-YS180M4,DSZK107-YS200M4,DSZK107-YS225M4,DSZK107-YVP100M4,DSZK107-YVP112M4,DSZK107-YVP132M4,DSZK107-YVP160M4,DSZK107-YVP180M4,DSZK107-YVP200M4,DSZK107-YVP225M4,DSZK107-YVPEJ100M4,DSZK107-YVPEJ112M4,DSZK107-YVPEJ132M4,DSZK107-YVPEJ160M4,DSZK107-YVPEJ180M4,DSZK107-YVPEJ200M4,DSZK107-YVPEJ225M4,BK107-Y100M4,BK107-Y112M4,BK107-Y11KW,BK107-Y132M4,BK107-Y15KW,BK107-Y160M4,BK107-Y18.5KW,BK107-Y180M4,BK107-Y200M4,BK107-Y225M4,BK107-Y22KW,BK107-Y30KW,BK107-Y37KW,BK107-Y3KW,BK107-Y45KW,BK107-Y4KW,BK107-Y5.5KW,BK107-Y7.5KW,BK107-YEJ100M4,BK107-YEJ112M4,BK107-YEJ132M4,BK107-YEJ160M4,BK107-YEJ180M4,BK107-YEJ200M4,BK107-YEJ225M4,BK107-YS100M4,BK107-YS112M4,BK107-YS132M4,BK107-YS160M4,BK107-YS180M4,BK107-YS200M4,BK107-YS225M4,BK107-YVP100M4,BK107-YVP112M4,BK107-YVP132M4,BK107-YVP160M4,BK107-YVP180M4,BK107-YVP200M4,BK107-YVP225M4,BK107-YVPEJ100M4,BK107-YVPEJ112M4,BK107-YVPEJ132M4,BK107-YVPEJ160M4,BK107-YVPEJ180M4,BK107-YVPEJ200M4,BK107-YVPEJ225M4,GK107-Y100M4,GK107-Y112M4,GK107-Y11KW,GK107-Y132M4,GK107-Y15KW,GK107-Y160M4,GK107-Y18.5KW,GK107-Y180M4,GK107-Y200M4,GK107-Y225M4,GK107-Y22KW,GK107-Y30KW,GK107-Y37KW,GK107-Y3KW,GK107-Y45KW,GK107-Y4KW,GK107-Y5.5KW,GK107-Y7.5KW,GK107-YEJ100M4,GK107-YEJ112M4,GK107-YEJ132M4,GK107-YEJ160M4,GK107-YEJ180M4,GK107-YEJ200M4,GK107-YEJ225M4,GK107-YS100M4,GK107-YS112M4,GK107-YS132M4,GK107-YS160M4,GK107-YS180M4,GK107-YS200M4,GK107-YS225M4,GK107-YVP100M4,GK107-YVP112M4,GK107-YVP132M4,GK107-YVP160M4,GK107-YVP180M4,GK107-YVP200M4,GK107-YVP225M4,GK107-YVPEJ100M4,GK107-YVPEJ112M4,GK107-YVPEJ132M4,GK107-YVPEJ160M4,GK107-YVPEJ180M4,GK107-YVPEJ200M4,GK107-YVPEJ225M4,KC107-Y100M4,KC107-Y112M4,KC107-Y11KW,KC107-Y132M4,KC107-Y15KW,KC107-Y160M4,KC107-Y18.5KW,KC107-Y180M4,KC107-Y200M4,KC107-Y225M4,KC107-Y22KW,KC107-Y30KW,KC107-Y37KW,KC107-Y3KW,KC107-Y45KW,KC107-Y4KW,KC107-Y5.5KW,KC107-Y7.5KW,KC107-YEJ100M4,KC107-YEJ112M4,KC107-YEJ132M4,KC107-YEJ160M4,KC107-YEJ180M4,KC107-YEJ200M4,KC107-YEJ225M4,KC107-YS100M4,KC107-YS112M4,KC107-YS132M4,KC107-YS160M4,KC107-YS180M4,KC107-YS200M4,KC107-YS225M4,KC107-YVP100M4,KC107-YVP112M4,KC107-YVP132M4,KC107-YVP160M4,KC107-YVP180M4,KC107-YVP200M4,KC107-YVP225M4,KC107-YVPEJ100M4,KC107-YVPEJ112M4,KC107-YVPEJ132M4,KC107-YVPEJ160M4,KC107-YVPEJ180M4,KC107-YVPEJ200M4,KC107-YVPEJ225M4,MTJ107-Y100M4,MTJ107-Y112M4,MTJ107-Y11KW,MTJ107-Y132M4,MTJ107-Y15KW,MTJ107-Y160M4,MTJ107-Y18.5KW,MTJ107-Y180M4,MTJ107-Y200M4,MTJ107-Y225M4,MTJ107-Y22KW,MTJ107-Y30KW,MTJ107-Y37KW,MTJ107-Y3KW,MTJ107-Y45KW,MTJ107-Y4KW,MTJ107-Y5.5KW,MTJ107-Y7.5KW,MTJ107-YEJ100M4,MTJ107-YEJ112M4,MTJ107-YEJ132M4,MTJ107-YEJ160M4,MTJ107-YEJ180M4,MTJ107-YEJ200M4,MTJ107-YEJ225M4,MTJ107-YS100M4,MTJ107-YS112M4,MTJ107-YS132M4,MTJ107-YS160M4,MTJ107-YS180M4,MTJ107-YS200M4,MTJ107-YS225M4,MTJ107-YVP100M4,MTJ107-YVP112M4,MTJ107-YVP132M4,MTJ107-YVP160M4,MTJ107-YVP180M4,MTJ107-YVP200M4,MTJ107-YVP225M4,MTJ107-YVPEJ100M4,MTJ107-YVPEJ112M4,MTJ107-YVPEJ132M4,MTJ107-YVPEJ160M4,MTJ107-YVPEJ180M4,MTJ107-YVPEJ200M4,MTJ107-YVPEJ225M4,WXK107-WSS100M4,WXK107-WSS112M4,WXK107-WSS11KW,WXK107-WSS132M4,WXK107-WSS15KW,WXK107-WSS160M4,WXK107-WSS18.5KW,WXK107-WSS180M4,WXK107-WSS200M4,WXK107-WSS225M4,WXK107-WSS22KW,WXK107-WSS30KW,WXK107-WSS37KW,WXK107-WSS3KW,WXK107-WSS45KW,WXK107-WSS4KW,WXK107-WSS5.5KW,WXK107-WSS7.5KW,WXK107-WSSB100M4,WXK107-WSSB112M4,WXK107-WSSB132M4,WXK107-WSSB160M4,WXK107-WSSB180M4,WXK107-WSSB200M4,WXK107-WSSB225M4,WXK107-WSSVP100M4,WXK107-WSSVP112M4,WXK107-WSSVP132M4,WXK107-WSSVP160M4,WXK107-WSSVP180M4,WXK107-WSSVP200M4,WXK107-WSSVP225M4,WXK107-WSSVPB100M4,WXK107-WSSVPB112M4,WXK107-WSSVPB132M4,WXK107-WSSVPB160M4,WXK107-WSSVPB180M4,WXK107-WSSVPB200M4,WXK107-WSSVPB225M4。
