RF97減速機重量：RF97減速機重量103公斤，RF97減速機帶電機重量分別如下：

RF97減速機帶0.55KW電機重量118公斤,RF97減速機帶0.75KW電機重量119公斤,RF97減速機帶1.1KW電機重量123公斤,RF97減速機帶1.5KW電機重量126公斤,RF97減速機帶2.2KW電機重量135公斤,RF97減速機帶3KW電機重量138公斤,RF97減速機帶4KW電機重量149公斤,RF97減速機帶5.5KW電機重量163公斤,RF97減速機帶7.5KW電機重量176公斤,RF97減速機帶11KW電機重量218公斤,RF97減速機帶15KW電機重量238公斤,RF97減速機帶18.5KW電機重量275公斤,RF97減速機帶22KW電機重量288公斤,RF97減速機帶30KW電機重量356公斤,RF97減速機帶37KW電機重量403公斤。齒輪減速機

RF97減速機加油量：可加合成油

RF97減速機M2安裝加11.7、14升，RF97減速機M1安裝加4.6、9.8升，RF97減速機M3安裝加11.7升，RF97減速機M4安裝加13.4升，RF97減速機M5安裝加11.3升，RF97減速機M6安裝加11.7升。規(guī)定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時,您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速器相應的標準參考潤滑油注入量值。

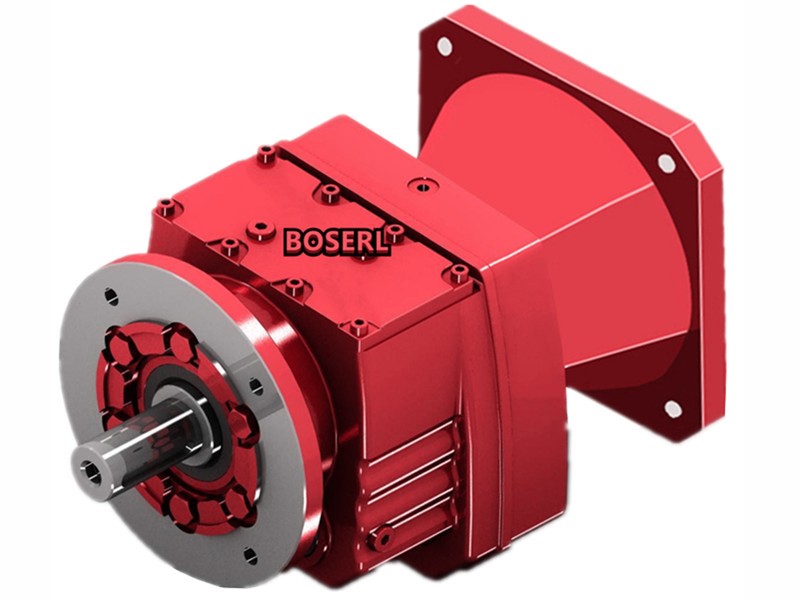

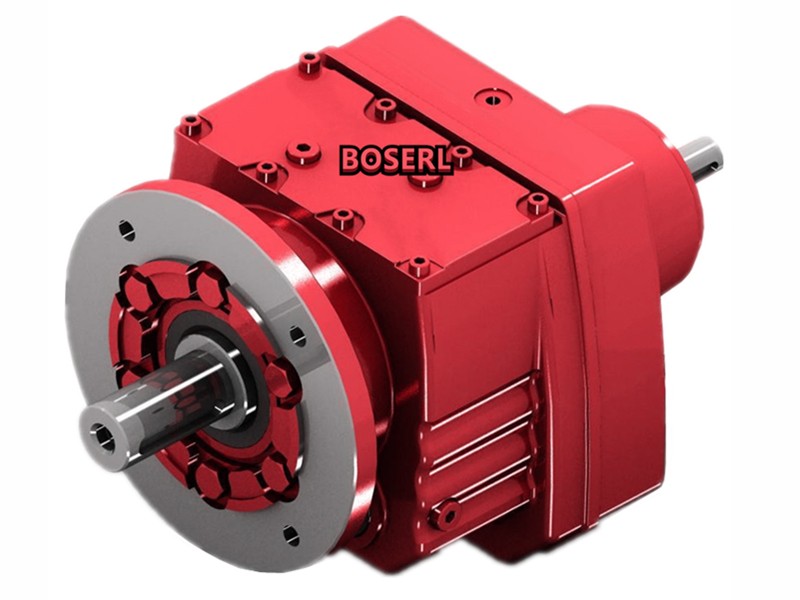

RF97減速機實物圖：圖一為RF97法蘭立式安裝斜齒輪減速機，圖二為R97底腳安裝斜齒輪減速機，圖三為RX97減速機不同心臥式底腳安裝，圖四為RXF97減速機不同心立式法蘭安裝。RF系列減速機

RF97減速機型號表示方法：

RF97減速機型號結構RF97-B30KW-4P-減速比-安裝方式-接線盒位置。

RF97減速機性能參數表結構說明：1/min代表輸出轉數，KW代表電機功率，Nm代表輸出扭矩，i代表減速比，N代表徑向負荷，K代表服務系數，F(xiàn)rame size代表基座規(guī)格，Input Configuration代表輸入帶置。

RF97減速機電機接線盒方位說明：本頁附件選型樣本視圖為M1安裝，方向為:從電機尾部的風罩向前看?？商峁㏑(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位。其中R(0°)位置是默認方位,如無特別說明，將按默認方位提供。可提供S和N兩種進線方位,其中S位置將按默認方位。如無特別說明，將按默認方位R(0°)提供。同軸減速機

RF97減速機參數：

RF97減速機電機可帶剎車、變頻、防爆、伺服、交流、直流、三相、單相電機RF97帶0.55KW,RF97帶0.75KW,RF97帶1.1KW,RF97帶1.5KW,RF97帶2.2KW,RF97帶3KW,RF97帶4KW,RF97帶5.5KW,RF97帶7.5KW,RF97帶11KW,RF97帶15KW,RF97帶18.5KW,RF97帶22KW,RF97帶30KW,RF97帶37KW。

RF97減速機輸出轉速4.8轉,5.5轉,5.8轉,6.5轉,7.5轉,8.2轉,9.3轉,11轉,12轉,14轉,15轉,17轉,19轉,21轉,23轉,26轉,29轉,33轉,38轉,42轉,44轉,51轉,56轉,63轉,70轉,77轉,87轉,96轉,113轉,129轉,151轉,167轉,197轉,225轉,269轉,311轉。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

RF97減速機負載扭矩1630N.m,1780N.m,1890N.m,2000N.m,2030N.m,2090N.m,2190N.m,2300N.m,2400N.m,2500N.m,2560N.m,2610N.m,2670N.m,2720N.m,2830N.m,2890N.m,3000N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

RF97減速機減速比4.5比,5.2比,6.21比,7.12比,8.39比,9.29比,10.83比,13.39比,14.62比,16.17比,18.24比,20.14比,22.37比,25.03比,27.19比,27.58比,32.05比,33.25比,37.13比,42.78比,47.58比,53.21比,59.92比,65.21比,72.17比,83.15比,92.48比,103.44比,116.48比,126.75比,150.78比,170.02比,186.3比,216.28比,241.25比,255.71比,289.74比。

RF97減速機外形尺寸：輸出軸Φ60+鍵4（可定做），高368*寬348*長440（帶輸出軸）

RF97減速機型號：RF97AQA80,RF97AQA100,RF97AQA115,RF97AQA140,RF97AQA160,RF97AQA190,RF97AQH80,RF97AQH100,RF97AQH115,RF97AQH140,RF97AQH160,RF97AQH190,JRTRF97-Y0.55KW,JRTRF97-Y0.75KW,JRTRF97-Y1.1KW,JRTRF97-Y1.5KW,JRTRF97-Y100M4,JRTRF97-Y112M4,JRTRF97-Y11KW,JRTRF97-Y132M4,JRTRF97-Y15KW,JRTRF97-Y160M4,JRTRF97-Y18.5KW,JRTRF97-Y180M4,JRTRF97-Y2.2KW,JRTRF97-Y200M4,JRTRF97-Y22KW,JRTRF97-Y30KW,JRTRF97-Y3KW,JRTRF97-Y4KW,JRTRF97-Y5.5KW,JRTRF97-Y7.5KW,JRTRF97-Y80M4,JRTRF97-Y90M4,JRTRF97-YEJ100M4,JRTRF97-YEJ112M4,JRTRF97-YEJ132M4,JRTRF97-YEJ160M4,JRTRF97-YEJ180M4,JRTRF97-YEJ200M4,JRTRF97-YEJ80M4,JRTRF97-YEJ90M4,JRTRF97-YS100M4,JRTRF97-YS112M4,JRTRF97-YS132M4,JRTRF97-YS160M4,JRTRF97-YS180M4,JRTRF97-YS200M4,JRTRF97-YS80M4,JRTRF97-YS90M4,JRTRF97-YVP100M4,JRTRF97-YVP112M4,JRTRF97-YVP132M4,JRTRF97-YVP160M4,JRTRF97-YVP180M4,JRTRF97-YVP200M4,JRTRF97-YVP80M4,JRTRF97-YVP90M4,JRTRF97-YVPEJ100M4,JRTRF97-YVPEJ112M4,JRTRF97-YVPEJ132M4,JRTRF97-YVPEJ160M4,JRTRF97-YVPEJ180M4,JRTRF97-YVPEJ200M4,JRTRF97-YVPEJ80M4,JRTRF97-YVPEJ90M4,EWRF97-Y0.55KW,EWRF97-Y0.75KW,EWRF97-Y1.1KW,EWRF97-Y1.5KW,EWRF97-Y100M4,EWRF97-Y112M4,EWRF97-Y11KW,EWRF97-Y132M4,EWRF97-Y15KW,EWRF97-Y160M4,EWRF97-Y18.5KW,EWRF97-Y180M4,EWRF97-Y2.2KW,EWRF97-Y200M4,EWRF97-Y22KW,EWRF97-Y30KW,EWRF97-Y3KW,EWRF97-Y4KW,EWRF97-Y5.5KW,EWRF97-Y7.5KW,EWRF97-Y80M4,EWRF97-Y90M4,EWRF97-YEJ100M4,EWRF97-YEJ112M4,EWRF97-YEJ132M4,EWRF97-YEJ160M4,EWRF97-YEJ180M4,EWRF97-YEJ200M4,EWRF97-YEJ80M4,EWRF97-YEJ90M4,EWRF97-YS100M4,EWRF97-YS112M4,EWRF97-YS132M4,EWRF97-YS160M4,EWRF97-YS180M4,EWRF97-YS200M4,EWRF97-YS80M4,EWRF97-YS90M4,EWRF97-YVP100M4,EWRF97-YVP112M4,EWRF97-YVP132M4,EWRF97-YVP160M4,EWRF97-YVP180M4,EWRF97-YVP200M4,EWRF97-YVP80M4,EWRF97-YVP90M4,EWRF97-YVPEJ100M4,EWRF97-YVPEJ112M4,EWRF97-YVPEJ132M4,EWRF97-YVPEJ160M4,EWRF97-YVPEJ180M4,EWRF97-YVPEJ200M4,EWRF97-YVPEJ80M4,EWRF97-YVPEJ90M4,SLRF97-Y0.55KW,SLRF97-Y0.75KW,SLRF97-Y1.1KW,SLRF97-Y1.5KW,SLRF97-Y100M4,SLRF97-Y112M4,SLRF97-Y11KW,SLRF97-Y132M4,SLRF97-Y15KW,SLRF97-Y160M4,SLRF97-Y18.5KW,SLRF97-Y180M4,SLRF97-Y2.2KW,SLRF97-Y200M4,SLRF97-Y22KW,SLRF97-Y30KW,SLRF97-Y3KW,SLRF97-Y4KW,SLRF97-Y5.5KW,SLRF97-Y7.5KW,SLRF97-Y80M4,SLRF97-Y90M4,SLRF97-YEJ100M4,SLRF97-YEJ112M4,SLRF97-YEJ132M4,SLRF97-YEJ160M4,SLRF97-YEJ180M4,SLRF97-YEJ200M4,SLRF97-YEJ80M4,SLRF97-YEJ90M4,SLRF97-YS100M4,SLRF97-YS112M4,SLRF97-YS132M4,SLRF97-YS160M4,SLRF97-YS180M4,SLRF97-YS200M4,SLRF97-YS80M4,SLRF97-YS90M4,SLRF97-YVP100M4,SLRF97-YVP112M4,SLRF97-YVP132M4,SLRF97-YVP160M4,SLRF97-YVP180M4,SLRF97-YVP200M4,SLRF97-YVP80M4,SLRF97-YVP90M4,SLRF97-YVPEJ100M4,SLRF97-YVPEJ112M4,SLRF97-YVPEJ132M4,SLRF97-YVPEJ160M4,SLRF97-YVPEJ180M4,SLRF97-YVPEJ200M4,SLRF97-YVPEJ80M4,SLRF97-YVPEJ90M4,DSZRF97-Y0.55KW,DSZRF97-Y0.75KW,DSZRF97-Y1.1KW,DSZRF97-Y1.5KW,DSZRF97-Y100M4,DSZRF97-Y112M4,DSZRF97-Y11KW,DSZRF97-Y132M4,DSZRF97-Y15KW,DSZRF97-Y160M4,DSZRF97-Y18.5KW,DSZRF97-Y180M4,DSZRF97-Y2.2KW,DSZRF97-Y200M4,DSZRF97-Y22KW,DSZRF97-Y30KW,DSZRF97-Y3KW,DSZRF97-Y4KW,DSZRF97-Y5.5KW,DSZRF97-Y7.5KW,DSZRF97-Y80M4,DSZRF97-Y90M4,DSZRF97-YEJ100M4,DSZRF97-YEJ112M4,DSZRF97-YEJ132M4,DSZRF97-YEJ160M4,DSZRF97-YEJ180M4,DSZRF97-YEJ200M4,DSZRF97-YEJ80M4,DSZRF97-YEJ90M4,DSZRF97-YS100M4,DSZRF97-YS112M4,DSZRF97-YS132M4,DSZRF97-YS160M4,DSZRF97-YS180M4,DSZRF97-YS200M4,DSZRF97-YS80M4,DSZRF97-YS90M4,DSZRF97-YVP100M4,DSZRF97-YVP112M4,DSZRF97-YVP132M4,DSZRF97-YVP160M4,DSZRF97-YVP180M4,DSZRF97-YVP200M4,DSZRF97-YVP80M4,DSZRF97-YVP90M4,DSZRF97-YVPEJ100M4,DSZRF97-YVPEJ112M4,DSZRF97-YVPEJ132M4,DSZRF97-YVPEJ160M4,DSZRF97-YVPEJ180M4,DSZRF97-YVPEJ200M4,DSZRF97-YVPEJ80M4,DSZRF97-YVPEJ90M4,BRF97-Y0.55KW,BRF97-Y0.75KW,BRF97-Y1.1KW,BRF97-Y1.5KW,BRF97-Y100M4,BRF97-Y112M4,BRF97-Y11KW,BRF97-Y132M4,BRF97-Y15KW,BRF97-Y160M4,BRF97-Y18.5KW,BRF97-Y180M4,BRF97-Y2.2KW,BRF97-Y200M4,BRF97-Y22KW,BRF97-Y30KW,BRF97-Y3KW,BRF97-Y4KW,BRF97-Y5.5KW,BRF97-Y7.5KW,BRF97-Y80M4,BRF97-Y90M4,BRF97-YEJ100M4,BRF97-YEJ112M4,BRF97-YEJ132M4,BRF97-YEJ160M4,BRF97-YEJ180M4,BRF97-YEJ200M4,BRF97-YEJ80M4,BRF97-YEJ90M4,BRF97-YS100M4,BRF97-YS112M4,BRF97-YS132M4,BRF97-YS160M4,BRF97-YS180M4,BRF97-YS200M4,BRF97-YS80M4,BRF97-YS90M4,BRF97-YVP100M4,BRF97-YVP112M4,BRF97-YVP132M4,BRF97-YVP160M4,BRF97-YVP180M4,BRF97-YVP200M4,BRF97-YVP80M4,BRF97-YVP90M4,BRF97-YVPEJ100M4,BRF97-YVPEJ112M4,BRF97-YVPEJ132M4,BRF97-YVPEJ160M4,BRF97-YVPEJ180M4,BRF97-YVPEJ200M4,BRF97-YVPEJ80M4,BRF97-YVPEJ90M4,GRF97-Y0.55KW,GRF97-Y0.75KW,GRF97-Y1.1KW,GRF97-Y1.5KW,GRF97-Y100M4,GRF97-Y112M4,GRF97-Y11KW,GRF97-Y132M4,GRF97-Y15KW,GRF97-Y160M4,GRF97-Y18.5KW,GRF97-Y180M4,GRF97-Y2.2KW,GRF97-Y200M4,GRF97-Y22KW,GRF97-Y30KW,GRF97-Y3KW,GRF97-Y4KW,GRF97-Y5.5KW,GRF97-Y7.5KW,GRF97-Y80M4,GRF97-Y90M4,GRF97-YEJ100M4,GRF97-YEJ112M4,GRF97-YEJ132M4,GRF97-YEJ160M4,GRF97-YEJ180M4,GRF97-YEJ200M4,GRF97-YEJ80M4,GRF97-YEJ90M4,GRF97-YS100M4,GRF97-YS112M4,GRF97-YS132M4,GRF97-YS160M4,GRF97-YS180M4,GRF97-YS200M4,GRF97-YS80M4,GRF97-YS90M4,GRF97-YVP100M4,GRF97-YVP112M4,GRF97-YVP132M4,GRF97-YVP160M4,GRF97-YVP180M4,GRF97-YVP200M4,GRF97-YVP80M4,GRF97-YVP90M4,GRF97-YVPEJ100M4,GRF97-YVPEJ112M4,GRF97-YVPEJ132M4,GRF97-YVPEJ160M4,GRF97-YVPEJ180M4,GRF97-YVPEJ200M4,GRF97-YVPEJ80M4,GRF97-YVPEJ90M4,RCF97-Y0.55KW,RCF97-Y0.75KW,RCF97-Y1.1KW,RCF97-Y1.5KW,RCF97-Y100M4,RCF97-Y112M4,RCF97-Y11KW,RCF97-Y132M4,RCF97-Y15KW,RCF97-Y160M4,RCF97-Y18.5KW,RCF97-Y180M4,RCF97-Y2.2KW,RCF97-Y200M4,RCF97-Y22KW,RCF97-Y30KW,RCF97-Y3KW,RCF97-Y4KW,RCF97-Y5.5KW,RCF97-Y7.5KW,RCF97-Y80M4,RCF97-Y90M4,RCF97-YEJ100M4,RCF97-YEJ112M4,RCF97-YEJ132M4,RCF97-YEJ160M4,RCF97-YEJ180M4,RCF97-YEJ200M4,RCF97-YEJ80M4,RCF97-YEJ90M4,RCF97-YS100M4,RCF97-YS112M4,RCF97-YS132M4,RCF97-YS160M4,RCF97-YS180M4,RCF97-YS200M4,RCF97-YS80M4,RCF97-YS90M4,RCF97-YVP100M4,RCF97-YVP112M4,RCF97-YVP132M4,RCF97-YVP160M4,RCF97-YVP180M4,RCF97-YVP200M4,RCF97-YVP80M4,RCF97-YVP90M4,RCF97-YVPEJ100M4,RCF97-YVPEJ112M4,RCF97-YVPEJ132M4,RCF97-YVPEJ160M4,RCF97-YVPEJ180M4,RCF97-YVPEJ200M4,RCF97-YVPEJ80M4,RCF97-YVPEJ90M4,MTDF97-Y0.55KW,MTDF97-Y0.75KW,MTDF97-Y1.1KW,MTDF97-Y1.5KW,MTDF97-Y100M4,MTDF97-Y112M4,MTDF97-Y11KW,MTDF97-Y132M4,MTDF97-Y15KW,MTDF97-Y160M4,MTDF97-Y18.5KW,MTDF97-Y180M4,MTDF97-Y2.2KW,MTDF97-Y200M4,MTDF97-Y22KW,MTDF97-Y30KW,MTDF97-Y3KW,MTDF97-Y4KW,MTDF97-Y5.5KW,MTDF97-Y7.5KW,MTDF97-Y80M4,MTDF97-Y90M4,MTDF97-YEJ100M4,MTDF97-YEJ112M4,MTDF97-YEJ132M4,MTDF97-YEJ160M4,MTDF97-YEJ180M4,MTDF97-YEJ200M4,MTDF97-YEJ80M4,MTDF97-YEJ90M4,MTDF97-YS100M4,MTDF97-YS112M4,MTDF97-YS132M4,MTDF97-YS160M4,MTDF97-YS180M4,MTDF97-YS200M4,MTDF97-YS80M4,MTDF97-YS90M4,MTDF97-YVP100M4,MTDF97-YVP112M4,MTDF97-YVP132M4,MTDF97-YVP160M4,MTDF97-YVP180M4,MTDF97-YVP200M4,MTDF97-YVP80M4,MTDF97-YVP90M4,MTDF97-YVPEJ100M4,MTDF97-YVPEJ112M4,MTDF97-YVPEJ132M4,MTDF97-YVPEJ160M4,MTDF97-YVPEJ180M4,MTDF97-YVPEJ200M4,MTDF97-YVPEJ80M4,MTDF97-YVPEJ90M4,WXRF97-WSS0.55KW,WXRF97-WSS0.75KW,WXRF97-WSS1.1KW,WXRF97-WSS1.5KW,WXRF97-WSS100M4,WXRF97-WSS112M4,WXRF97-WSS11KW,WXRF97-WSS132M4,WXRF97-WSS15KW,WXRF97-WSS160M4,WXRF97-WSS18.5KW,WXRF97-WSS180M4,WXRF97-WSS2.2KW,WXRF97-WSS200M4,WXRF97-WSS22KW,WXRF97-WSS30KW,WXRF97-WSS3KW,WXRF97-WSS4KW,WXRF97-WSS5.5KW,WXRF97-WSS7.5KW,WXRF97-WSS80M4,WXRF97-WSS90M4,WXRF97-WSSB100M4,WXRF97-WSSB112M4,WXRF97-WSSB132M4,WXRF97-WSSB160M4,WXRF97-WSSB180M4,WXRF97-WSSB200M4,WXRF97-WSSB80M4,WXRF97-WSSB90M4,WXRF97-WSSVP100M4,WXRF97-WSSVP112M4,WXRF97-WSSVP132M4,WXRF97-WSSVP160M4,WXRF97-WSSVP180M4,WXRF97-WSSVP200M4,WXRF97-WSSVP80M4,WXRF97-WSSVP90M4,WXRF97-WSSVPB100M4,WXRF97-WSSVPB112M4,WXRF97-WSSVPB132M4,WXRF97-WSSVPB160M4,WXRF97-WSSVPB180M4,WXRF97-WSSVPB200M4,WXRF97-WSSVPB80M4,WXRF97-WSSVPB90M4。
