RF27減速機重量：RF27減速機重量7.5公斤，RF27減速機帶電機重量分別如下

RF27減速機帶0.12KW電機重量13公斤,RF27減速機帶0.18KW電機重量13.5公斤,RF27減速機帶0.25KW電機重量18.5公斤,RF27減速機帶0.37KW電機重量19公斤,RF27減速機帶0.55KW電機重量23.5公斤,RF27減速機帶0.75KW電機重量23.5公斤,RF27減速機帶1.1KW電機重量27.5公斤,RF27減速機帶1.5KW電機重量30.5公斤,RF27減速機帶2.2KW電機重量39.5公斤。

RF27減速機加油量：可加合成油齒輪減速機

RF27減速機M2安裝加0.7升，RF27減速機M1安裝加0.25、0.4升，RF27減速機M3安裝加0.5升，RF27減速機M4安裝加0.7升，RF27減速機M5安裝加0.5升，RF27減速機M6安裝加0.5升。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時,您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速器相應的標準參考潤滑油注入量值。

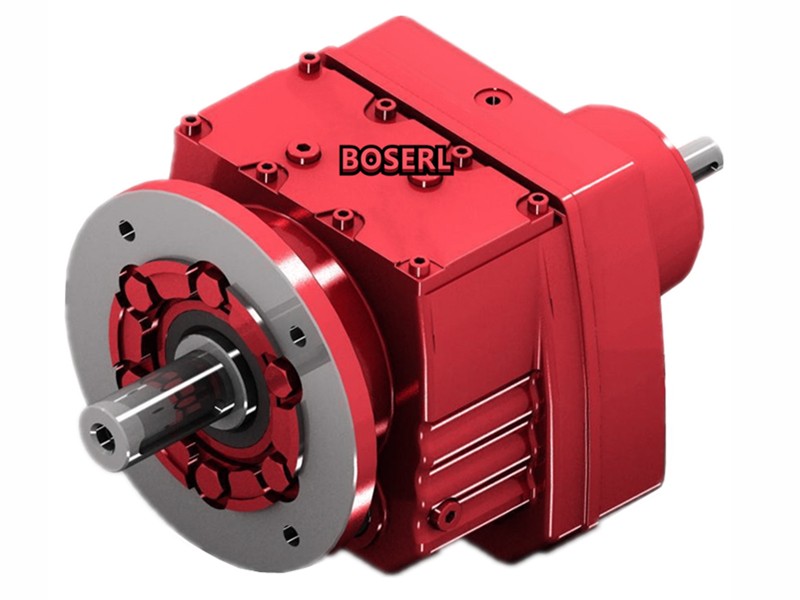

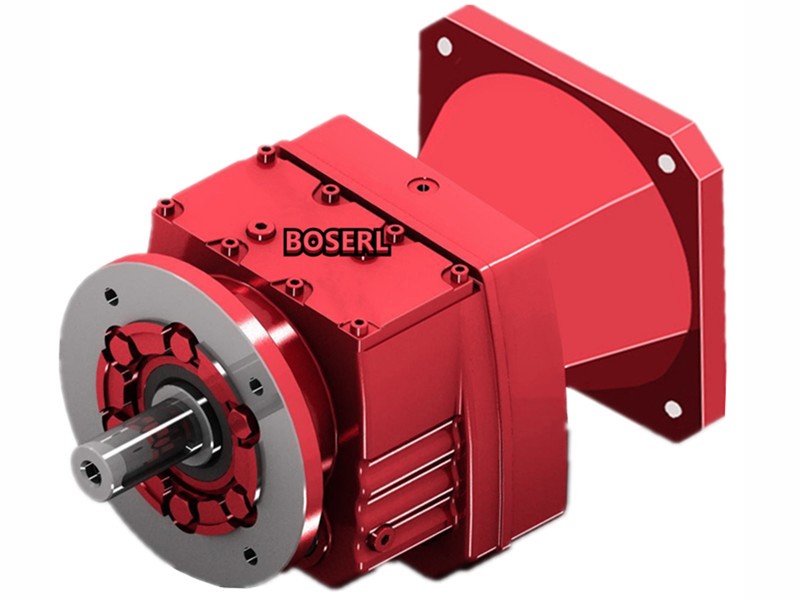

RF27減速機實物圖：圖一RF27法蘭立式安裝斜齒輪減速機，圖二為R27底腳安裝斜齒輪減速機，圖三為RX系列減速機不同心臥式底腳安裝，圖四為RXF系列減速機不同心立式法蘭安裝。RF系列減速機

RF27減速機型號表示方法：

RF27減速機型號結構RF27-B1.1KW-4P-減速比-安裝方式-接線盒位置。

RF27減速機性能參數表結構說明：1/min代表輸出轉數，KW代表電機功率，Nm代表輸出扭矩，i代表減速比，N代表徑向負荷，K代表服務系數，F(xiàn)rame size代表基座規格，Input Configuration代表輸入帶置。

RF27減速機電機接線盒方位說明：本頁附件選型樣本視圖為M1安裝，方向?yàn)?從電機尾部的風罩向前看。可提供R(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位。其中R(0°)位置是默認方位,如無特別說明，將按默認方位提供?？商峁㏒和N兩種進線方位,其中S位置將按默認方位。如無特別說明，將按默認方位R(0°)提供。

RF27減速機參數：

RF27減速機電機可帶剎車、變頻、防爆、伺服、交流、直流、三相、單相電機RF27帶0.18KW,RF27帶0.25KW,RF27帶0.37KW,RF27帶0.55KW,RF27帶0.75KW,RF27帶1.1KW,RF27帶1.5KW,RF27帶2.2KW,RF27帶3KW。

RF27減速機輸出轉速10轉,11轉,13轉,15轉,17轉,19轉,20轉,23轉,25轉,29轉,31轉,36轉,38轉,43轉,49轉,57轉,54轉,63轉,72轉,77轉,90轉,105轉,118轉,138轉,149轉,172轉,183轉,212轉,250轉,280轉,328轉,350轉,415轉。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

RF27減速機負載扭矩130N.m,129N.m,122N.m,116N.m,112N.m,106N.m,99N.m,95N.m,87N.m,85N.m,79N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

RF27減速機減速比135.09比,123.91比,105.49比,90.96比,84.78比,74.11比,69.47比,61.3比,55.87比,48.17比,44.90比,39.25比,36.79比,32.47比,28.78比,24.47比,28.37比,26.09比,22.32比,19.35比,18.08比,15.63比,13.28比,11.86比,10.13比,9.41比,8.16比,7.63比,6.59比,5.6比,5比,4.27比,4比,3.37比。

RF27減速機外形尺寸：輸出軸Φ25+鍵3（可定做），高148.5*寬145*長193（帶輸出軸）同軸減速機

RF27減速機型號：RF27AQA80,RF27AQA100,RF27AQA115,RF27AQA140,RF27AQA160,RF27AQA190,RF27AQH80,RF27AQH100,RF27AQH115,RF27AQH140,RF27AQH160,RF27AQH190,JRTRF27-Y0.12KW,JRTRF27-Y0.18KW,JRTRF27-Y0.25KW,JRTRF27-Y0.37KW,JRTRF27-Y0.55KW,JRTRF27-Y0.75KW,JRTRF27-Y1.1KW,JRTRF27-Y1.5KW,JRTRF27-Y100M4,JRTRF27-Y2.2KW,JRTRF27-Y3KW,JRTRF27-Y63M4,JRTRF27-Y71M4,JRTRF27-Y80M4,JRTRF27-Y90M4,JRTRF27-YEJ100M4,JRTRF27-YEJ63M4,JRTRF27-YEJ71M4,JRTRF27-YEJ80M4,JRTRF27-YEJ90M4,JRTRF27-YS100M4,JRTRF27-YS63M4,JRTRF27-YS71M4,JRTRF27-YS80M4,JRTRF27-YS90M4,JRTRF27-YVP100M4,JRTRF27-YVP63M4,JRTRF27-YVP71M4,JRTRF27-YVP80M4,JRTRF27-YVP90M4,JRTRF27-YVPEJ100M4,JRTRF27-YVPEJ63M4,JRTRF27-YVPEJ71M4,JRTRF27-YVPEJ80M4,JRTRF27-YVPEJ90M4,EWRF27-Y0.12KW,EWRF27-Y0.18KW,EWRF27-Y0.25KW,EWRF27-Y0.37KW,EWRF27-Y0.55KW,EWRF27-Y0.75KW,EWRF27-Y1.1KW,EWRF27-Y1.5KW,EWRF27-Y100M4,EWRF27-Y2.2KW,EWRF27-Y3KW,EWRF27-Y63M4,EWRF27-Y71M4,EWRF27-Y80M4,EWRF27-Y90M4,EWRF27-YEJ100M4,EWRF27-YEJ63M4,EWRF27-YEJ71M4,EWRF27-YEJ80M4,EWRF27-YEJ90M4,EWRF27-YS100M4,EWRF27-YS63M4,EWRF27-YS71M4,EWRF27-YS80M4,EWRF27-YS90M4,EWRF27-YVP100M4,EWRF27-YVP63M4,EWRF27-YVP71M4,EWRF27-YVP80M4,EWRF27-YVP90M4,EWRF27-YVPEJ100M4,EWRF27-YVPEJ63M4,EWRF27-YVPEJ71M4,EWRF27-YVPEJ80M4,EWRF27-YVPEJ90M4,SLRF27-Y0.12KW,SLRF27-Y0.18KW,SLRF27-Y0.25KW,SLRF27-Y0.37KW,SLRF27-Y0.55KW,SLRF27-Y0.75KW,SLRF27-Y1.1KW,SLRF27-Y1.5KW,SLRF27-Y100M4,SLRF27-Y2.2KW,SLRF27-Y3KW,SLRF27-Y63M4,SLRF27-Y71M4,SLRF27-Y80M4,SLRF27-Y90M4,SLRF27-YEJ100M4,SLRF27-YEJ63M4,SLRF27-YEJ71M4,SLRF27-YEJ80M4,SLRF27-YEJ90M4,SLRF27-YS100M4,SLRF27-YS63M4,SLRF27-YS71M4,SLRF27-YS80M4,SLRF27-YS90M4,SLRF27-YVP100M4,SLRF27-YVP63M4,SLRF27-YVP71M4,SLRF27-YVP80M4,SLRF27-YVP90M4,SLRF27-YVPEJ100M4,SLRF27-YVPEJ63M4,SLRF27-YVPEJ71M4,SLRF27-YVPEJ80M4,SLRF27-YVPEJ90M4,DSZRF27-Y0.12KW,DSZRF27-Y0.18KW,DSZRF27-Y0.25KW,DSZRF27-Y0.37KW,DSZRF27-Y0.55KW,DSZRF27-Y0.75KW,DSZRF27-Y1.1KW,DSZRF27-Y1.5KW,DSZRF27-Y100M4,DSZRF27-Y2.2KW,DSZRF27-Y3KW,DSZRF27-Y63M4,DSZRF27-Y71M4,DSZRF27-Y80M4,DSZRF27-Y90M4,DSZRF27-YEJ100M4,DSZRF27-YEJ63M4,DSZRF27-YEJ71M4,DSZRF27-YEJ80M4,DSZRF27-YEJ90M4,DSZRF27-YS100M4,DSZRF27-YS63M4,DSZRF27-YS71M4,DSZRF27-YS80M4,DSZRF27-YS90M4,DSZRF27-YVP100M4,DSZRF27-YVP63M4,DSZRF27-YVP71M4,DSZRF27-YVP80M4,DSZRF27-YVP90M4,DSZRF27-YVPEJ100M4,DSZRF27-YVPEJ63M4,DSZRF27-YVPEJ71M4,DSZRF27-YVPEJ80M4,DSZRF27-YVPEJ90M4,BRF27-Y0.12KW,BRF27-Y0.18KW,BRF27-Y0.25KW,BRF27-Y0.37KW,BRF27-Y0.55KW,BRF27-Y0.75KW,BRF27-Y1.1KW,BRF27-Y1.5KW,BRF27-Y100M4,BRF27-Y2.2KW,BRF27-Y3KW,BRF27-Y63M4,BRF27-Y71M4,BRF27-Y80M4,BRF27-Y90M4,BRF27-YEJ100M4,BRF27-YEJ63M4,BRF27-YEJ71M4,BRF27-YEJ80M4,BRF27-YEJ90M4,BRF27-YS100M4,BRF27-YS63M4,BRF27-YS71M4,BRF27-YS80M4,BRF27-YS90M4,BRF27-YVP100M4,BRF27-YVP63M4,BRF27-YVP71M4,BRF27-YVP80M4,BRF27-YVP90M4,BRF27-YVPEJ100M4,BRF27-YVPEJ63M4,BRF27-YVPEJ71M4,BRF27-YVPEJ80M4,BRF27-YVPEJ90M4,GRF27-Y0.12KW,GRF27-Y0.18KW,GRF27-Y0.25KW,GRF27-Y0.37KW,GRF27-Y0.55KW,GRF27-Y0.75KW,GRF27-Y1.1KW,GRF27-Y1.5KW,GRF27-Y100M4,GRF27-Y2.2KW,GRF27-Y3KW,GRF27-Y63M4,GRF27-Y71M4,GRF27-Y80M4,GRF27-Y90M4,GRF27-YEJ100M4,GRF27-YEJ63M4,GRF27-YEJ71M4,GRF27-YEJ80M4,GRF27-YEJ90M4,GRF27-YS100M4,GRF27-YS63M4,GRF27-YS71M4,GRF27-YS80M4,GRF27-YS90M4,GRF27-YVP100M4,GRF27-YVP63M4,GRF27-YVP71M4,GRF27-YVP80M4,GRF27-YVP90M4,GRF27-YVPEJ100M4,GRF27-YVPEJ63M4,GRF27-YVPEJ71M4,GRF27-YVPEJ80M4,GRF27-YVPEJ90M4,RCF27-Y0.12KW,RCF27-Y0.18KW,RCF27-Y0.25KW,RCF27-Y0.37KW,RCF27-Y0.55KW,RCF27-Y0.75KW,RCF27-Y1.1KW,RCF27-Y1.5KW,RCF27-Y100M4,RCF27-Y2.2KW,RCF27-Y3KW,RCF27-Y63M4,RCF27-Y71M4,RCF27-Y80M4,RCF27-Y90M4,RCF27-YEJ100M4,RCF27-YEJ63M4,RCF27-YEJ71M4,RCF27-YEJ80M4,RCF27-YEJ90M4,RCF27-YS100M4,RCF27-YS63M4,RCF27-YS71M4,RCF27-YS80M4,RCF27-YS90M4,RCF27-YVP100M4,RCF27-YVP63M4,RCF27-YVP71M4,RCF27-YVP80M4,RCF27-YVP90M4,RCF27-YVPEJ100M4,RCF27-YVPEJ63M4,RCF27-YVPEJ71M4,RCF27-YVPEJ80M4,RCF27-YVPEJ90M4,MTDF27-Y0.12KW,MTDF27-Y0.18KW,MTDF27-Y0.25KW,MTDF27-Y0.37KW,MTDF27-Y0.55KW,MTDF27-Y0.75KW,MTDF27-Y1.1KW,MTDF27-Y1.5KW,MTDF27-Y100M4,MTDF27-Y2.2KW,MTDF27-Y3KW,MTDF27-Y63M4,MTDF27-Y71M4,MTDF27-Y80M4,MTDF27-Y90M4,MTDF27-YEJ100M4,MTDF27-YEJ63M4,MTDF27-YEJ71M4,MTDF27-YEJ80M4,MTDF27-YEJ90M4,MTDF27-YS100M4,MTDF27-YS63M4,MTDF27-YS71M4,MTDF27-YS80M4,MTDF27-YS90M4,MTDF27-YVP100M4,MTDF27-YVP63M4,MTDF27-YVP71M4,MTDF27-YVP80M4,MTDF27-YVP90M4,MTDF27-YVPEJ100M4,MTDF27-YVPEJ63M4,MTDF27-YVPEJ71M4,MTDF27-YVPEJ80M4,MTDF27-YVPEJ90M4,WXRF27-WSS0.12KW,WXRF27-WSS0.18KW,WXRF27-WSS0.25KW,WXRF27-WSS0.37KW,WXRF27-WSS0.55KW,WXRF27-WSS0.75KW,WXRF27-WSS1.1KW,WXRF27-WSS1.5KW,WXRF27-WSS100M4,WXRF27-WSS2.2KW,WXRF27-WSS3KW,WXRF27-WSS63M4,WXRF27-WSS71M4,WXRF27-WSS80M4,WXRF27-WSS90M4,WXRF27-WSSB100M4,WXRF27-WSSB63M4,WXRF27-WSSB71M4,WXRF27-WSSB80M4,WXRF27-WSSB90M4,WXRF27-WSSVP100M4,WXRF27-WSSVP63M4,WXRF27-WSSVP71M4,WXRF27-WSSVP80M4,WXRF27-WSSVP90M4,WXRF27-WSSVPB100M4,WXRF27-WSSVPB63M4,WXRF27-WSSVPB71M4,WXRF27-WSSVPB80M4,WXRF27-WSSVPB90M4。
