KF37減速機重量：KF37減速機重量13公斤，KF37減速機帶電機重量分別如下

KF37減速機帶0.12KW電機重量18.5公斤，KF37減速機帶0.18KW電機重量19公斤，KF37減速機帶0.25KW電機重量23公斤，KF37減速機帶0.37KW電機重量23.5公斤，KF37減速機帶0.55KW電機重量28公斤，KF37減速機帶0.75KW電機重量29公斤，KF37減速機帶1.1KW電機重量33公斤，KF37減速機帶1.5KW電機重量36公斤，KF37減速機帶2.2KW電機重量45公斤，KF37減速機帶3KW電機重量48公斤。直角減速機

KF37減速機加油量：可加合成油

KF37減速機M2方式安裝加1.1升，KF37減速機M1方式安裝加0.5升，KF37減速機M3方式安裝加1.1升，KF37減速機M4方式安裝加1.5升，KF37減速機M5方式安裝加1升，KF37減速機M6方式安裝加1升。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時，您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1- M6的減速機相應的標準參考潤滑油注入量值。

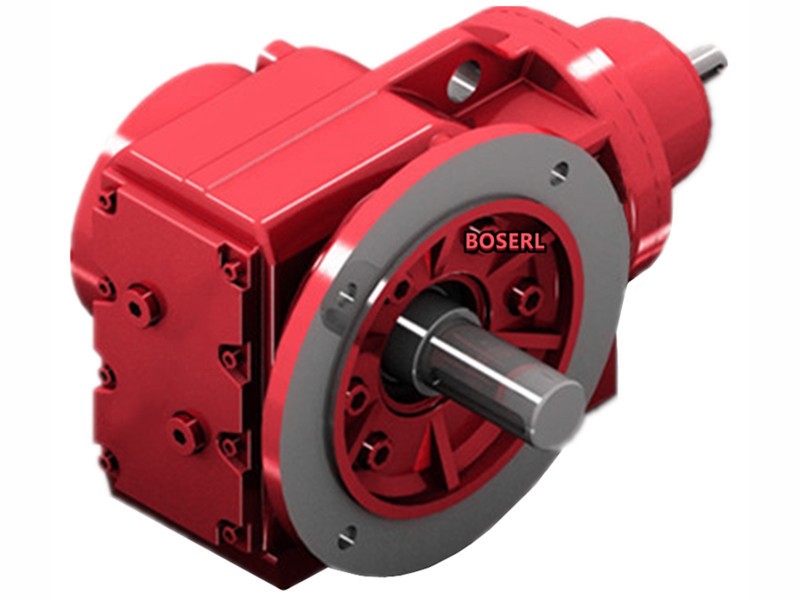

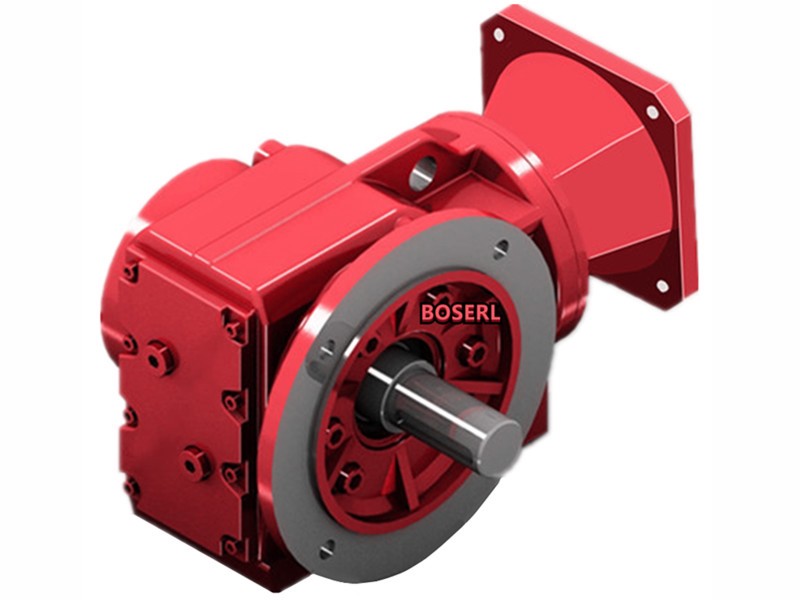

KF37減速機實物圖：圖一為KF37立式方式安裝實心軸輸出螺旋錐齒輪減速電機，圖二K37臥式方式安裝螺旋錐齒輪減速電機，圖三為KA37臥式方式安裝空心軸螺旋錐齒輪減速電機，圖四為KAF37立式方式安裝直角空心軸螺旋錐齒輪減速機。

KF37減速機型號表示方法：

KF37減速機型號結構KF37-B2.2KW-4P-減速比-安裝方式-接線盒位置。

KF37減速機性能參數表結構說明：V強制冷卻風扇，RS逆止器，C防雨罩，Input Configuration代表輸入帶置，TF電機熱保護裝置，KF37、K37、KA37、KAF37減速機機座號，N代表徑向負荷，HR手動釋放裝置，1/min代表輸出轉數，HF手動釋放裝置帶自鎖功能。

KF37減速機電機接線盒方位說明：本頁附件選型樣本視圖為M1方式安裝，方向為:從電機尾部的風罩向前看?？商峁㏑(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位?？商峁㏒和N兩種進線方位，其中R(0°)位置是默認方位，如無特別說明，將按默認方位提供。

KF37減速機參數：

KF37減速機輸出轉數13轉，14轉，17轉，19轉，21轉，24轉，28轉，31轉，37轉，39轉，47轉，49轉，56轉，60轉，69轉，82轉，91轉，107轉，115轉，133轉，157轉，176轉，206轉，220轉，261轉，352轉。（以上轉數均為四級電機算出的，可用2P、6P、8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為K系列減速機的輸入）

KF37減速機電機可帶單相、直流、變頻、剎車、防爆、伺服、交流、三相電機KF37帶0.12KW，KF37帶0.18KW，KF37帶0.25KW，KF37帶0.37KW，KF37帶0.55KW，KF37帶0.75KW，KF37帶1.1KW，KF37帶1.5KW，KF37帶2.2KW，KF37帶3KW。

KF37減速機輸出扭矩200N.m，195N.m，185N.m，180N.m，175N.m，165N.m，160N.m，155N.m，150N.m，145N.m，140N.m，125N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

KF37減速機減速比106.38比，97.81比，83.69比，72.54比，67.80比，58.60比，49.79比，44.46比，37.97比，35.57比，29.96比，28.83比，24.99比，23.36比，20.19比，17.15比，15.31比，13.08比，12.14比，10.49比，8.91比，7.96比，6.8比，6.37比，5.36比，3.98比

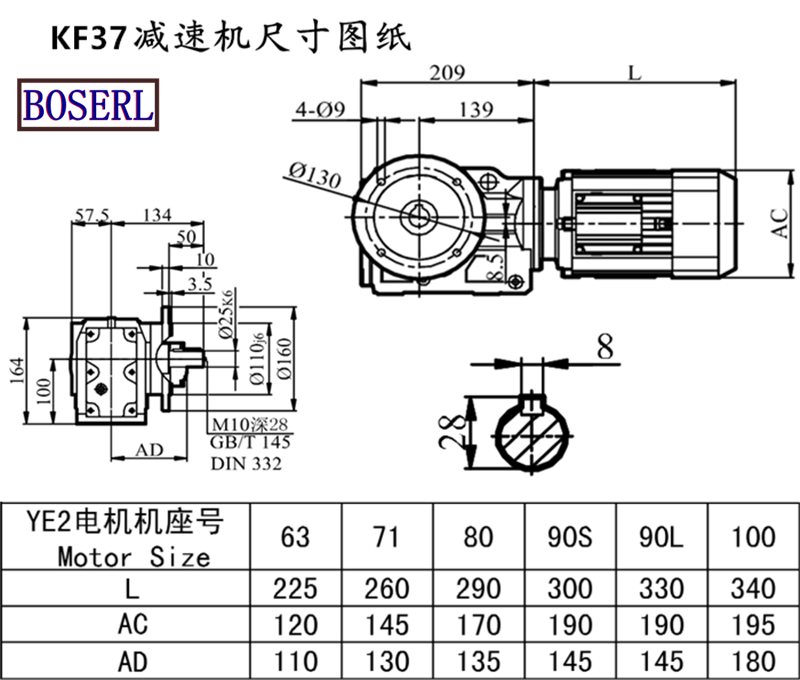

KF37減速機外形尺寸：輸出軸直徑Φ25（可定做）+鍵3，高165*寬191.5（帶輸出軸）*長220

KF37減速機型號：KF37AQA80,KF37AQA100,KF37AQA115,KF37AQA140,KF37AQA160,KF37AQA190,KF37AQH80,KF37AQH100,KF37AQH115,KF37AQH140,KF37AQH160,KF37AQH190,JRTKF37-Y0.12KW,JRTKF37-Y0.18KW,JRTKF37-Y0.25KW,JRTKF37-Y0.F37KW,JRTKF37-Y0.55KW,JRTKF37-Y0.75KW,JRTKF37-Y1.1KW,JRTKF37-Y1.5KW,JRTKF37-Y100M4,JRTKF37-Y2.2KW,JRTKF37-Y3KW,JRTKF37-Y63M4,JRTKF37-Y71M4,JRTKF37-Y80M4,JRTKF37-Y90M4,JRTKF37-YEJ100M4,JRTKF37-YEJ63M4,JRTKF37-YEJ71M4,JRTKF37-YEJ80M4,JRTKF37-YEJ90M4,JRTKF37-YS100M4,JRTKF37-YS63M4,JRTKF37-YS71M4,JRTKF37-YS80M4,JRTKF37-YS90M4,JRTKF37-YVP100M4,JRTKF37-YVP63M4,JRTKF37-YVP71M4,JRTKF37-YVP80M4,JRTKF37-YVP90M4,JRTKF37-YVPEJ100M4,JRTKF37-YVPEJ63M4,JRTKF37-YVPEJ71M4,JRTKF37-YVPEJ80M4,JRTKF37-YVPEJ90M4,EWKF37-Y0.12KW,EWKF37-Y0.18KW,EWKF37-Y0.25KW,EWKF37-Y0.F37KW,EWKF37-Y0.55KW,EWKF37-Y0.75KW,EWKF37-Y1.1KW,EWKF37-Y1.5KW,EWKF37-Y100M4,EWKF37-Y2.2KW,EWKF37-Y3KW,EWKF37-Y63M4,EWKF37-Y71M4,EWKF37-Y80M4,EWKF37-Y90M4,EWKF37-YEJ100M4,EWKF37-YEJ63M4,EWKF37-YEJ71M4,EWKF37-YEJ80M4,EWKF37-YEJ90M4,EWKF37-YS100M4,EWKF37-YS63M4,EWKF37-YS71M4,EWKF37-YS80M4,EWKF37-YS90M4,EWKF37-YVP100M4,EWKF37-YVP63M4,EWKF37-YVP71M4,EWKF37-YVP80M4,EWKF37-YVP90M4,EWKF37-YVPEJ100M4,EWKF37-YVPEJ63M4,EWKF37-YVPEJ71M4,EWKF37-YVPEJ80M4,EWKF37-YVPEJ90M4,SLKF37-Y0.12KW,SLKF37-Y0.18KW,SLKF37-Y0.25KW,SLKF37-Y0.F37KW,SLKF37-Y0.55KW,SLKF37-Y0.75KW,SLKF37-Y1.1KW,SLKF37-Y1.5KW,SLKF37-Y100M4,SLKF37-Y2.2KW,SLKF37-Y3KW,SLKF37-Y63M4,SLKF37-Y71M4,SLKF37-Y80M4,SLKF37-Y90M4,SLKF37-YEJ100M4,SLKF37-YEJ63M4,SLKF37-YEJ71M4,SLKF37-YEJ80M4,SLKF37-YEJ90M4,SLKF37-YS100M4,SLKF37-YS63M4,SLKF37-YS71M4,SLKF37-YS80M4,SLKF37-YS90M4,SLKF37-YVP100M4,SLKF37-YVP63M4,SLKF37-YVP71M4,SLKF37-YVP80M4,SLKF37-YVP90M4,SLKF37-YVPEJ100M4,SLKF37-YVPEJ63M4,SLKF37-YVPEJ71M4,SLKF37-YVPEJ80M4,SLKF37-YVPEJ90M4,DSZKF37-Y0.12KW,DSZKF37-Y0.18KW,DSZKF37-Y0.25KW,DSZKF37-Y0.F37KW,DSZKF37-Y0.55KW,DSZKF37-Y0.75KW,DSZKF37-Y1.1KW,DSZKF37-Y1.5KW,DSZKF37-Y100M4,DSZKF37-Y2.2KW,DSZKF37-Y3KW,DSZKF37-Y63M4,DSZKF37-Y71M4,DSZKF37-Y80M4,DSZKF37-Y90M4,DSZKF37-YEJ100M4,DSZKF37-YEJ63M4,DSZKF37-YEJ71M4,DSZKF37-YEJ80M4,DSZKF37-YEJ90M4,DSZKF37-YS100M4,DSZKF37-YS63M4,DSZKF37-YS71M4,DSZKF37-YS80M4,DSZKF37-YS90M4,DSZKF37-YVP100M4,DSZKF37-YVP63M4,DSZKF37-YVP71M4,DSZKF37-YVP80M4,DSZKF37-YVP90M4,DSZKF37-YVPEJ100M4,DSZKF37-YVPEJ63M4,DSZKF37-YVPEJ71M4,DSZKF37-YVPEJ80M4,DSZKF37-YVPEJ90M4,BKF37-Y0.12KW,BKF37-Y0.18KW,BKF37-Y0.25KW,BKF37-Y0.F37KW,BKF37-Y0.55KW,BKF37-Y0.75KW,BKF37-Y1.1KW,BKF37-Y1.5KW,BKF37-Y100M4,BKF37-Y2.2KW,BKF37-Y3KW,BKF37-Y63M4,BKF37-Y71M4,BKF37-Y80M4,BKF37-Y90M4,BKF37-YEJ100M4,BKF37-YEJ63M4,BKF37-YEJ71M4,BKF37-YEJ80M4,BKF37-YEJ90M4,BKF37-YS100M4,BKF37-YS63M4,BKF37-YS71M4,BKF37-YS80M4,BKF37-YS90M4,BKF37-YVP100M4,BKF37-YVP63M4,BKF37-YVP71M4,BKF37-YVP80M4,BKF37-YVP90M4,BKF37-YVPEJ100M4,BKF37-YVPEJ63M4,BKF37-YVPEJ71M4,BKF37-YVPEJ80M4,BKF37-YVPEJ90M4,GKF37-Y0.12KW,GKF37-Y0.18KW,GKF37-Y0.25KW,GKF37-Y0.F37KW,GKF37-Y0.55KW,GKF37-Y0.75KW,GKF37-Y1.1KW,GKF37-Y1.5KW,GKF37-Y100M4,GKF37-Y2.2KW,GKF37-Y3KW,GKF37-Y63M4,GKF37-Y71M4,GKF37-Y80M4,GKF37-Y90M4,GKF37-YEJ100M4,GKF37-YEJ63M4,GKF37-YEJ71M4,GKF37-YEJ80M4,GKF37-YEJ90M4,GKF37-YS100M4,GKF37-YS63M4,GKF37-YS71M4,GKF37-YS80M4,GKF37-YS90M4,GKF37-YVP100M4,GKF37-YVP63M4,GKF37-YVP71M4,GKF37-YVP80M4,GKF37-YVP90M4,GKF37-YVPEJ100M4,GKF37-YVPEJ63M4,GKF37-YVPEJ71M4,GKF37-YVPEJ80M4,GKF37-YVPEJ90M4,KCF37-Y0.12KW,KCF37-Y0.18KW,KCF37-Y0.25KW,KCF37-Y0.F37KW,KCF37-Y0.55KW,KCF37-Y0.75KW,KCF37-Y1.1KW,KCF37-Y1.5KW,KCF37-Y100M4,KCF37-Y2.2KW,KCF37-Y3KW,KCF37-Y63M4,KCF37-Y71M4,KCF37-Y80M4,KCF37-Y90M4,KCF37-YEJ100M4,KCF37-YEJ63M4,KCF37-YEJ71M4,KCF37-YEJ80M4,KCF37-YEJ90M4,KCF37-YS100M4,KCF37-YS63M4,KCF37-YS71M4,KCF37-YS80M4,KCF37-YS90M4,KCF37-YVP100M4,KCF37-YVP63M4,KCF37-YVP71M4,KCF37-YVP80M4,KCF37-YVP90M4,KCF37-YVPEJ100M4,KCF37-YVPEJ63M4,KCF37-YVPEJ71M4,KCF37-YVPEJ80M4,KCF37-YVPEJ90M4,MTJF37-Y0.12KW,MTJF37-Y0.18KW,MTJF37-Y0.25KW,MTJF37-Y0.F37KW,MTJF37-Y0.55KW,MTJF37-Y0.75KW,MTJF37-Y1.1KW,MTJF37-Y1.5KW,MTJF37-Y100M4,MTJF37-Y2.2KW,MTJF37-Y3KW,MTJF37-Y63M4,MTJF37-Y71M4,MTJF37-Y80M4,MTJF37-Y90M4,MTJF37-YEJ100M4,MTJF37-YEJ63M4,MTJF37-YEJ71M4,MTJF37-YEJ80M4,MTJF37-YEJ90M4,MTJF37-YS100M4,MTJF37-YS63M4,MTJF37-YS71M4,MTJF37-YS80M4,MTJF37-YS90M4,MTJF37-YVP100M4,MTJF37-YVP63M4,MTJF37-YVP71M4,MTJF37-YVP80M4,MTJF37-YVP90M4,MTJF37-YVPEJ100M4,MTJF37-YVPEJ63M4,MTJF37-YVPEJ71M4,MTJF37-YVPEJ80M4,MTJF37-YVPEJ90M4,WXKF37-WSS0.12KW,WXKF37-WSS0.18KW,WXKF37-WSS0.25KW,WXKF37-WSS0.F37KW,WXKF37-WSS0.55KW,WXKF37-WSS0.75KW,WXKF37-WSS1.1KW,WXKF37-WSS1.5KW,WXKF37-WSS100M4,WXKF37-WSS2.2KW,WXKF37-WSS3KW,WXKF37-WSS63M4,WXKF37-WSS71M4,WXKF37-WSS80M4,WXKF37-WSS90M4,WXKF37-WSSB100M4,WXKF37-WSSB63M4,WXKF37-WSSB71M4,WXKF37-WSSB80M4,WXKF37-WSSB90M4,WXKF37-WSSVP100M4,WXKF37-WSSVP63M4,WXKF37-WSSVP71M4,WXKF37-WSSVP80M4,WXKF37-WSSVP90M4,WXKF37-WSSVPB100M4,WXKF37-WSSVPB63M4,WXKF37-WSSVPB71M4,WXKF37-WSSVPB80M4,WXKF37-WSSVPB90M4。伺服電機減速機

KF37減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.liveonbowen.com/product/list-kfxiliejiansuji-cn.html
